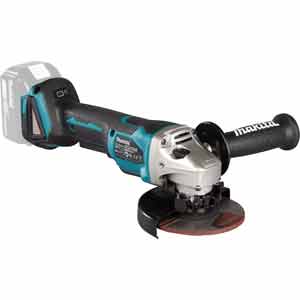

Angle grinders MAKITA DGA508Z

Angle grinder; Power source: Battery; For abor hole diameter: 22.23mm; Wheel diameter: 125mm, 5"; 8500rpm

4.013.500 ₫

Model:

DGA508Z

Manufacturer: MAKITA

Series: DGA series

Category: Angle grinders

Feature

Document

Line up

Catalog

Specifications of Angle grinders MAKITA DGA508Z
Type	Angle grinder
Power source	Battery
For abor hole diameter	22.23mm
Wheel diameter	125mm, 5"
No-load speed	8500rpm
Standard accessories	Wheel cover: 123145-8, Grinding wheel: A-80656, Grip 36 complete: 1582 37-4, Lock nut wrench 35: 782423-1 [...]
Saparately accessories	Stator complete: 629203-3, Ball bearing 607: 210169-4, Rotor Ass'Y: 51 0329-1, Gear housing cover: 319214-3, O-Ring 26: 213445-5, Ball bearing 629LLB: 210042-8, Spiral bevel gear 10: 226861-2, Hex. Nut M6: 252186-8, Pin cap: 417771-6, Compression spring 8: 233072-2, Tapping screw 4X30: 266361-0, O Ring 5: 213960-9, Shoulder pin 4: 256546-6, Gear sousing: 319213-5, Rubber pin 4: 263002-9, Ball bearing 696ZX: 210033-9, Ring spring 11: 233950-6, Spiral bevel gear 37: 226862-0, Retaining ring R-32: 962151-6, Ball bearing 6201DDW: 211129-9, Felt ring 16: 262153-5, O Ring 45: 213622-9, Bearing box: 319399-5, Pan head screw M4X14: 911121-2, Retaining ring R-26: 962105-3, Spindle: 326672-6, Toolless wheelcover125AK Assy: 123145-8, O Ring 4: 213009-5, Pan head screw M5X16: 265180-1, Nner flange 42B: 224447-6, Lock nut 14-45: 224554-5, DGA508 name plate: 852A28-8, Tapping screw 4X18: 266326-2, Dust cover R: 455450-8, Motor housing set: 183A52-3, Rubber pin 6: 263005-3, Motor housing set: 183J40-4, Switch unit: 632E12-1, Compression spring 11: 234357-9, Switch lever complete: 142976-6, Indicator panel complete: 142901-7, Switch TG73BDS-2: 650734-1, Dust cover L: 455449-3, Terminal: 643899-6, DGA508 serial No. label: 852A36-9, Lead flange: 310514-4, Grinding wheel 125 WA36N: A-80656, Lock nut wrench 35: 782423-1, Battery BL1850B det: 197280-8, Battery cover: 450128-8, Plastic case: 821734-0, Latch: 162315-4, Plastic case: 821817-6 [...]
Battery cartridge (Sold separately)	197280-8 (BL1850B), 194355-4 (BL1860B), 197254-9 (BL1820B), 197265-4 ( BL1840B), 197422-4 (BL1860B), 197599-5 (BL1830B), 632G12-3 (BL1830N) [...]
Charger (Sold separately)	195584-2 (DC18RC), 1910G0-1 (DC18WC), 191W37-7 (DC18WB), 194533-6 (DC1 8SD), 194621-9 (DC18SE), 195423-6 (DC18WA), 196426-3 (DC18SF), 196933-6 (DC18RD), 198444-7 (DC18RE), 199687-4 (DC18SH) [...]
Power source voltage	18VDC
Number of included batteries	0
For use with wheel	Grinding wheels
Spindle thread diameter	M14
Max thickness of wheel	6.4mm
Switch type	Paddle switch
Number of speed levels	Single-speed
Feature	The subject models are cordless angle grinders with Electric brake pow ered by 18V Li-ion battery, and developed based on the current DGA405 series, KickBack control, Soft start, Click and clean system, Electric brake [...]
Approx. weight	2.4kg, 2.6kg
Overall length	362mm
Overall width	140mm
Overall height	151mm
