The actual product may look different from the pictures but retains its basic features.

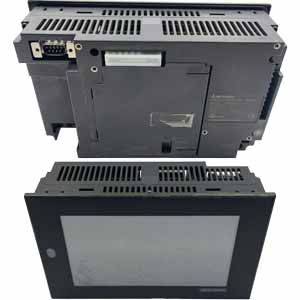

A956W types, 7 inch wide HMI MITSUBISHI A956WGOT-TBD

Power supply voltage: 24VDC; 7 inch; 480x234 pixel; 256 colors; Internal memory: 1MB; No; 1 x RS-232C

Model:

A956WGOT-TBD

Manufacturer: MITSUBISHI

Series: GOT A900 series

Category: Common HMI

Feature

Document

Line up

Catalog

Specifications of A956W types, 7 inch wide HMI MITSUBISHI A956WGOT-TBD
Power supply voltage	24VDC
Display size	7 inch
Display resolution (HxV)	480x234 pixel
Display color	256 colors
Internal memory	1MB
Numeric keyboard	No
Communication interface	1 x RS-232C
Cable (Sold separately)	QC06B, QC12B, QC30B, QC50B, QC100B, A9GT-QC150BS, A9GT-QC200BS, A9GT-Q C250BS, A9GT-QC300BS, A9GT-QC350BS, A9GT-QCNB, A8GT-C12NB, A8GT-C30NB, A8GT-C50NB, AC06B, AC12B, AC30B, AC50B, AC12B-R, AC30B-R, AC50B-R, A370C12B-S1, A370C25B-S1, A370C12B, A370C25B, A1SC07B, A1SC12B, A1SC30B, A1SC50B, A1SC05NB, A1SC07NB, A1SC30NB, A1SC50NB, A8GT-C100EXSS-1, A8GT-C200EXSS-1, A8GT-C300EXSS-1, A8GT-C100BS, A8GT-C200BS, A8GT-C300BS, A9GT-J2C10B, A7GT-CNB, A8GT-EXCNB, AC30R4-25P, AC100R4-25P, AC300R4-25P, FX9GT-CAB0-150, FX9GT-CAB0, FX9GT-CAB-10M, FA-CNV2402CBL, FA-CNV2405CBL, FX-422AW0, FX-422CAB0, AC006-25PEXT, FX-2PIF, QC30R2, AC30R2-9SS, FX-232CAB-1, AC30R2-9P, F2-232CAB-1, AC30R2, AC30N2A, AC006-9PEXT, AC30PIO-20P, A85GT-C05H, AC50VG, AC300VG, A7GT-CNB-BUS-1, A7GT-CNB-RS4-1 [...]
Interface unit (Sold separately)	A9GT-50WQBUSS, A9GT-50WBUSS, A9GT-QBUS2SU, A9GT-50WRS4, A9GT-50WRS2, A 8GT-50KBF, A1SD59J-MIF [...]
Sheet/Cover (Sold separately)	A9GT-50WPSC
Other option (Sold separately)	Memory board: A9GT-FNB, Memory board: A9GT-FNB1M, Memory board: A9GT-F NB2M, Memory board: A9GT-FNB4M, Memory board: A9GT-FNB8M, Memory board: A9GT-QFNB, Memory board: A9GT-QFNB4M, Memory board: A9GT-QFNB8M [...]
Type	HMI
Effective display area (horizontal × vertical)	155.52x87.75mm
Display type	TFT Color LCD
Backlight	Cold-cathode tube
Audible type	Buzzer
Operating systems	Microsoft Windows 98, Microsoft Windows 2000, Microsoft Windows NT, Mi crosoft windows millennium edition [...]
Connection software	GT Designer2, GT Works2
Features	OS installation, Various connection configurations, Transparents, Ladd er monitor, List program edit, Motion monitor, Network monitor function, Servo amplifier monitor, System monitor function, Alarm display, Alarm history, Alarm list function, Gateway function, Recipe function, Script function, Security function, Status monitor, Time action function, Screen call, Data conversion, Device monitor, Documentation assistance, Simulation debugging [...]
Cover material	Plastic
Mounting method	Flush mounting
Panel cutout	W205.5xH123.5mm
Ambient temperature	0...55°C
Ambient humidity	10...90%
Approx. weight	1.05kg
Overall width	215mm
Overall height	133mm
Overall depth	70.8mm
Degree of protection	IP65F
Representative standard	CE, cUL, UL
