The actual product may look different from the pictures but retains its basic features.

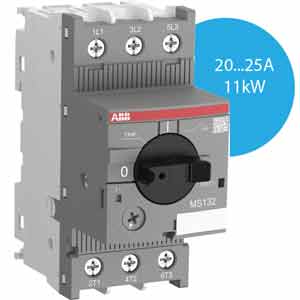

Manual motor starter ABB 1SAM350000R1014 (MS132-25)

3P; 20...25A; Motor power (at 400 VAC): 11kW; Breaking capacity: 50kA

1.244.900 ₫

Model:

1SAM350000R1014 (MS132-25)

Manufacturer: ABB

Series: MS132 series

Category: Motor circuit breakers

Feature

Document

Line up

Catalog

Specifications of Manual motor starter ABB 1SAM350000R1014 (MS132-25)
Number of poles	3P
Rated current (In)	20...25A
Motor power (at 400 VAC)	11kW
Breaking capacity	50kA
Separately accessories	Busbar: 1SAM201906R1102 (PS1-2-0-65), Busbar: 1SAM201906R1112 (PS1-2-1 -65), Busbar: 1SAM201906R1103 (PS1-3-0-65), Busbar: 1SAM201906R1104 (PS1-4-0-65), Busbar: 1SAM201906R1105 (PS1-5-0-65), Busbar: 1SAM201906R1113 (PS1-3-1-65), Busbar: 1SAM201906R1114 (PS1-4-1-65), Busbar: 1SAM201906R1115 (PS1-5-1-65), Busbar: 1SAM201906R1122 (PS1-2-2-65), Busbar: 1SAM201906R1123 (PS1-3-2-65), Busbar: 1SAM201906R1124 (PS1-4-2-65), Busbar: 1SAM201906R1125 (PS1-5-2-65), Busbar: 1SAM201916R1103 (PS1-3-0-100), Busbar: 1SAM201916R1104 (PS1-4-0-100), Busbar: 1SAM201916R1105 (PS1-5-0-100), Busbar: 1SAM201916R1113 (PS1-3-1-100), Busbar: 1SAM201916R1114 (PS1-4-1-100), Busbar: 1SAM201916R1115 (PS1-5-1-100), Power infeed: 1SAM201907R1101 (S1-M1-25), Power infeed: 1SAM201907R1102 (S1-M2-25), Power infeed: 1SAM201907R1103 (S1-M3-25), Power infeed: 1SAM201913R1103 (S1-M3-35), Protection cover: 1SAM201908R1001 (BS1-3), Screw fixing kit: 1SAM201909R1001 (FS116), Phase connecting link: 1SAM201914R1001 (PB1-1-32), Enclosure: 1SAM201911R1010 (IB132-G), Enclosure: 1SAM201911R1011 (IB132-Y), Enclosure: 1SAM201911R1012 (IB132-F), Door mounting kit: 1SAM201912R1010 (DMS132-G), Door mounting kit: 1SAM201912R1011 (DMS132-Y), Shaft supporter: 1SAM201909R1021 (MSAH1), Driver screw: 1SAM101923R0002 (MSMN), Driver without screw: 1SAM101923R0012 (MSMNO), Shaft: 1SCA101647R1001 (OXS6X85), Shaft: 1SCA108043R1001 (OXS6X105), Shaft: 1SCA101655R1001 (OXS6X130), Shaft: 1SCA101659R1001 (OXS6X180), Terminal spacer: 1SAM301911R1001 (TS1-M3-S1), Terminal spacer: 1SAM301912R1001 (S1-M3-S2), DIN-rail: HYBT-01, DIN-rail: PFP-100N, DIN-rail: TC 5x35x1000-Aluminium, DIN-rail: TC 5x35x1000-Steel, Stopper: BIZ-07, Stopper: BNL6, Stopper: HYBT-07 [...]
Type	Motor circuit breaker
Line voltage	AC
Rated voltage (Ue)	690VAC
Rated frequency	50/60Hz
Current rating adjustable (Ir)	Yes
Rated short-circuit breaking capacity (Icu)	50kA at 400VAC
Service breaking capacity - Ics (% Icu)	100%
On/Off control type	Direct rotary handle
Mounting method	DIN rail mounting
Connection type	Screw terminals
Approx. weight	310g
Overall width	45mm
Overall height	97.8mm
Overall depth	86.55mm
Degree of protection	IP10, IP20
Representative standard	IEC/EN 60947-2, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947 -4-1 [...]
Shunt trip (Sold separately)	1SAM201910R1001 (AA1-24), 1SAM201910R1002 (AA1-110), 1SAM201910R1003 ( AA1-230), 1SAM201910R1004 (AA1-400) [...]
Under/Over voltage trip (Sold separately)	1SAM201904R1001 (UA1-24), 1SAM201904R1002 (UA1-48), 1SAM201904R1003 (U A1-60), 1SAM201904R1004 (UA1-110), 1SAM201904R1005 (UA1-230), 1SAM201904R1006 (UA1-400), 1SAM201904R1007 (UA1-415), 1SAM201904R1008 (UA1-208), 1SAM201904R1009 (UA1-575), 1SAM201904R1010 (UA1-20) [...]
Auxiliary switch (Sold separately)	1SAM201902R1003 (HK1-02), 1SAM201902R1203 (HK1-02K), 1SAM201902R1004 ( HK1-20L), 1SAM201902R1204 (HK1-20LK), 1SAM201901R1003 (HKF1-10), 1SAM201902R1002 (HK1-20), 1SAM201902R1202 (HK1-20K), 1SAM201902R1001 (HK1-11), 1SAM201902R1201 (HK1-11K), 1SAM201901R1001 (HKF1-11), 1SAM201901R1201 (HKF11-11K), 1SAM201901R1002 (HKF1-20), 1SAM201901R1202 (HKF1-20K), 1SAM201901R1004 (HKF1-01) [...]
Alarm switch (Sold separately)	1SAM201903R1202 (SK1-20K), 1SAM201903R1005 (SK1-20AR), 1SAM201903R1205 (SK1-20ARK), 1SAM201903R1001 (SK1-11), 1SAM201903R1201 (SK1-11K), 1SAM201903R1004 (SK1-11AR), 1SAM201903R1204 (SK1-11ARK), 1SAM201903R1003 (SK1-02), 1SAM201903R1203 (SK1-02K), 1SAM201903R1006 (SK1-02AR), 1SAM201903R1206 (SK1-02ARK), 1SAM301901R1002 (CK1-20), 1SAM301901R1001 (CK1-11), 1SAM301901R1003 (CK1-02), 1SAM201903R1002 (SK1-20) [...]
Rotary handle (Sold separately)	1SAM201920R1011 (MSHD-LTB), 1SAM201920R1012 (MSHD-LTY)

Document Manual motor starter ABB 1SAM350000R1014 (MS132-25)

ms132-series-abb-cau-dao-bao-ve-dong-co-9133-catalog.pdf

Download
